Asus Prime H610M-E D4-CSM 1700 Socket

About the product

Introducing the ASUS Prime H610M-E D4-CSM Micro-ATX motherboard, with Intel® H610 chipset (LGA 1700), DDR4, PCIe 4.0, two M. 2 slots, Realtek 1Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen ports 1, SATA 6 Gbps, COM connectors and RGB lighting.

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Every ASUS CSM motherboard also comes with ASUS Control Center Express, a server-grade IT management software.

Features

• FLEXIBILITY. Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard includes flexible tools to tune every aspect of your system, allowing performance settings to perfectly match the way you work to maximize productivity.
• UEFI-BIOS. The rebranded ASUS UEFI BIOS provides everything you need to configure, modify and tune your system. It offers smartly simplified options for PC beginners as well as comprehensive features for seasoned veterans.
• REFRIGERATION. The Prime H610 series is designed with a heatsink and a series of hybrid ventilation connectors to ensure your equipment stays cool and stable under heavy workloads.
• PERFORMANCE. The Prime H610 series is designed to handle the additional cores and increased bandwidth of 12th Gen Intel® processors. ASUS H610 motherboards provide all the essentials to boost everyday productivity so your system is ready for action, with stable power, intuitive cooling and flexible transfer options.

ASUS Prime H610M-E D4-CSM Specifications:

• Processor
  • Processor manufacturer: Intel
  • Processor socket: LGA 1700
  • Processor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
  • Maximum number of SMP processors: 1

• Memory
  • Compatible memory types: DDR4-SDRAM
  • Number of memory slots: 2
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • Non-ECC: Yes
  • Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200 MHz
  • Maximum internal memory: 64 GB
  • Memory not saved: Yes

• Internal I/O
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 1
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Audio connector: Yes
  • ATX Connector (24-pin): Yes
  • CPU Fan Connector: Yes
  • Chassis Fan Connectors Quantity: 2
  • Number of COM connectors: 1
  • TPM Connector: Yes
  • 12V power connector: Yes

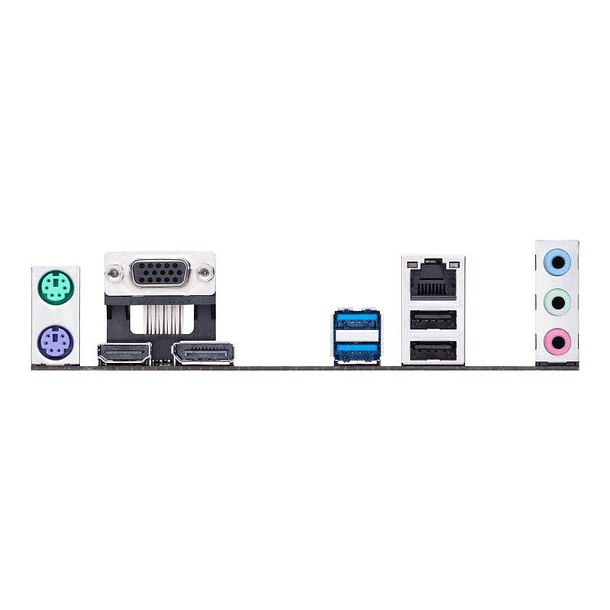

• Rear panel I/O ports
  • Number of USB 2.0 ports: 2
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) Type A ports: 2
  • Number of Ethernet LAN ports (RJ-45): 1
  • Number of PS/2 ports: 1
  • Number of VGA ports: 1
  • Quantity of HDMI ports: 1
  • HDMI version: 2.1
  • Number of DisplayPort ports: 1
  • DisplayPort Version: 1.4

• Network
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Wake-on-LAN Ready: Yes
  • Wi-Fi: No

• Features
  • Motherboard chipset: Intel H610
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard format: micro ATX
  • Motherboard chipset family: Intel
  • Compatible Windows OS: Windows 10 x64, Windows 11 x64

• Expansion slot
  • PCI Express x1 slots (Gen 3. x): 1
  • PCI Express x16 slots (Gen 4. x): 1
  • Number of M. 2 slots (M): 2

• Weights and dimensions
  • Width: 244 mm
  • Depth: 211 mm
  • Height: 221 mm

• Package contents
  • Cables: SATA
  • Drivers Included: Yes

• Other features
  • Weight: 382 g
