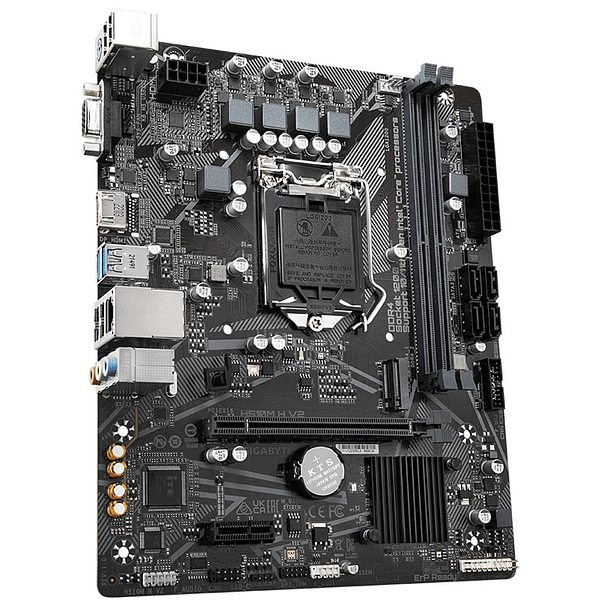

Gigabyte H510M H V2 Socket 1200

About the product

The Gigabyte H510M H V2 is an Ultra Durable motherboard with support for 11th and 10th generation Intel® Core™ processors, is compatible with dual-channel DDR4, and features GbE LAN, sulfur resistance and Smart Fan 5.

Features:

• Compatible with 11th and 10th generation Intel® Core™ processors.
• DDR4 Dual Channel, Unbuffered, Non-ECC, 2 DIMMs.
• 8-channel HD audio with high-quality audio capacitors.
• PCIe Gen3 x4 2280 M.2 NVMe PCIe x4 2280 connector.
• GbE LAN with bandwidth management.
• Smart Fan 5: It has multiple temperature sensors and hybrid ventilation connectors with FAN STOP.
• GIGABYTE Application Center, simple and easy to use.
• Anti-sulfur resistance design.

Gigabyte H510M H V2 Specifications:

• Processor
  • Processor manufacturer: Intel
  • Processor socket: LGA 1200
  • Processor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
  • Supported processor sockets: LGA 1200 (Socket H5)

• Memory
  • Compatible memory types: DDR4-SDRAM
  • Number of memory slots: 2
  • Memory slots type: DIMM
  • Memory channels: Dual channel
  • ECC: Yes
  • Non-ECC: Yes
  • Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
  • Maximum internal memory: 64 GB
  • Unbuffered memory: Yes

• Storage Controllers
  • Supported storage drive types: HDD & SSD
  • Supported storage interfaces: M. 2, PCI Express 3.0, SATA III
  • Storage quantity of supported drives: 5

• Graphics
  • Supports parallel processing technology: Not supported
  • Maximum Resolution: 4096 x 2304 pixels
  • HDCP: Yes
  • Number of monitors supported: 2

• Internal I/O
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 1
  • Number of SATA III connectors: 4
  • Front Panel Audio Connector: Yes
  • Front panel connector: Yes
  • ATX Connector (24-pin): Yes
  • CPU Fan Connector: Yes
  • Chassis Fan Connectors Quantity: 2
  • EPS Power Connector (8-pin): Yes
  • TPM Connector: Yes
  • Serial port connector: 1
  • 12V power connector: Yes
  • RGB LED Pin: Yes

• Rear panel I/O ports
  • Number of USB 2.0 ports: 4
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) Type A ports: 2
  • Number of Ethernet LAN ports (RJ-45): 1
  • Number of PS/2 ports: 2
  • Number of VGA ports: 1
  • Quantity of HDMI ports: 1
  • HDMI Version: 1.4
  • Microphone input: Yes
  • USB Connector Type: USB Type-A

• Network
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Wi-Fi: No

• Features
  • Motherboard chipset: Intel H510 Express
  • Audio output channels: 7.1 channels
  • PC Health Monitoring: Fan, Temperature, Voltage
  • Component for: PC
  • Motherboard format: micro ATX
  • Motherboard chipset family: Intel
  • Compatible Windows OS: Windows 10 x64

• Expansion slot
  • PCI Express x1 slots: 2
  • PCI Express x16 slots: 1
  • Number of M. 2 slots (M): 1

• BIOS
  • BIOS Type: UEFI AMI
  • BIOS memory size: 128 Mbit
  • ACPI Version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System Management BIOS (SMBIOS) Version: 2.7

• Weights and dimensions
  • Width: 226mm
  • Depth: 185mm
  • Height: 52mm

• Package contents
  • Cables: SATA
  • Drivers Included: Yes

• Other features
  • Weight: 385 g
